Shackles

Description: -

BS Number: -

Dimensions: -

Weight: -

Product Code: -

What are Shackles used for?

A shackle is a piece of metal that has been bent into a U shape, where the opening of the shackle is secured by a clevis pin or bolt. Alternatively, a hinged loop may be used with a quick release pin if the shackle is required to be opened and closed on a regular basis.

Shackles are used in a large number of different from sailing to industrial rigging. Where a strong and reliable connection is required, a shackle is usually the most appropriate product.

The two main manufacturing methods of shackles are either forging or casting. The casting process involves pouring molten metal into a mold which the solidifies as it cools. This process sometimes results in air bubbles forming which can have a significant detrimental impact on the breaking strength of the shackle. Forged shackles result in a much stronger and more reliable end product as the pricess ensures that the shackle is made of the same grade and intensity of steel.

Variants of shackles include:

  • D Shackles
  • D Iron Shackles
  • Bow Shackles - Small & Large
  • Overhead Power Line Shackles
  • Recovery Shackles
  • Threaded shackle

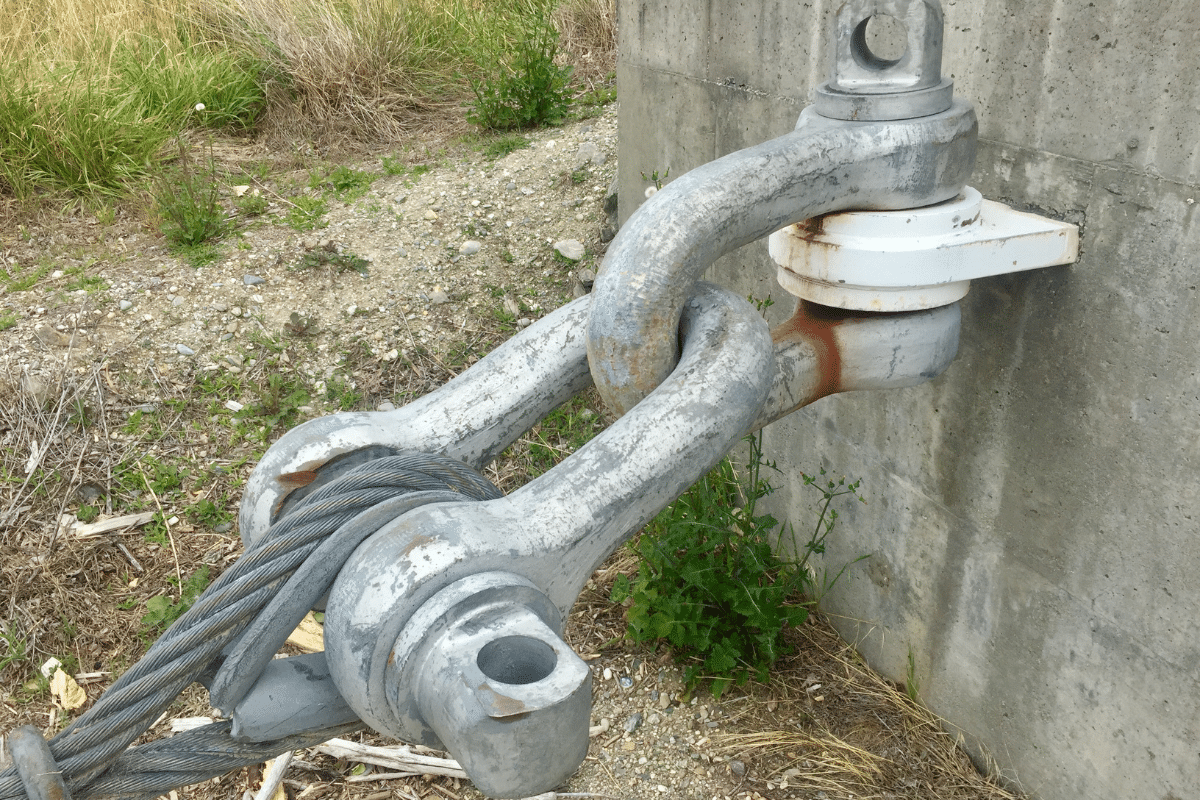

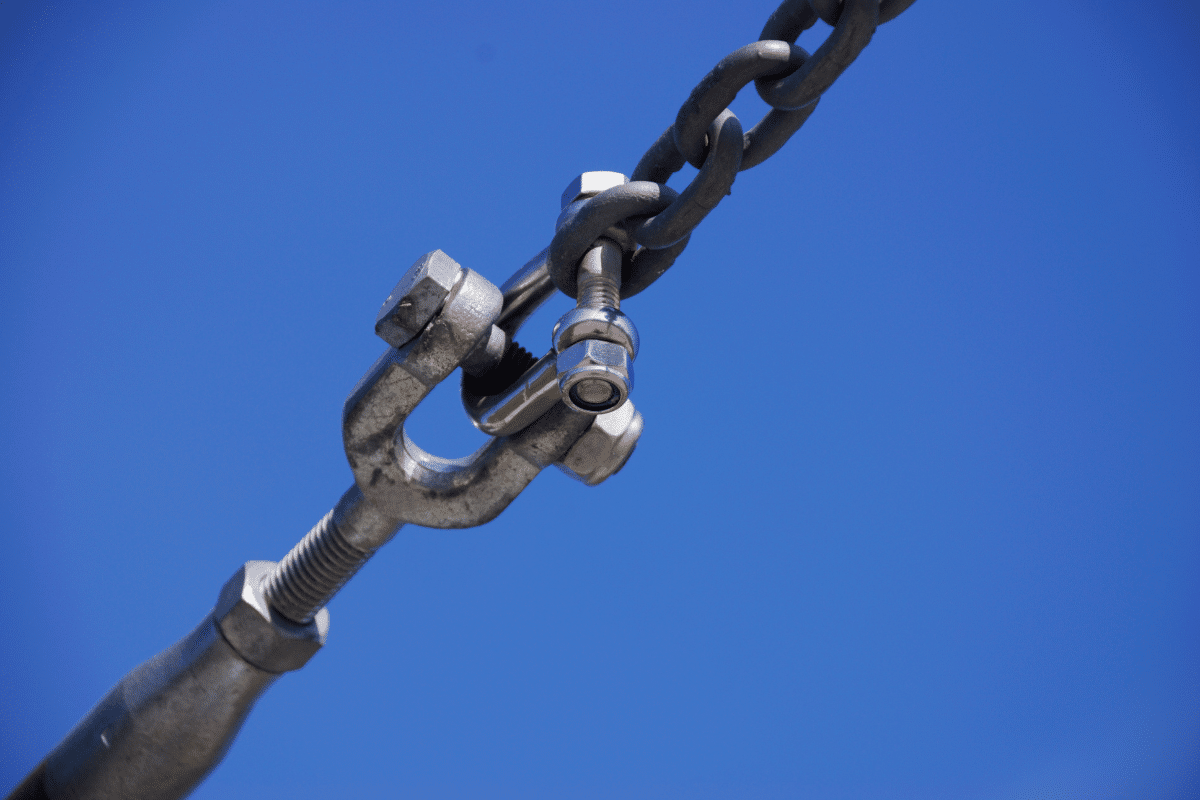

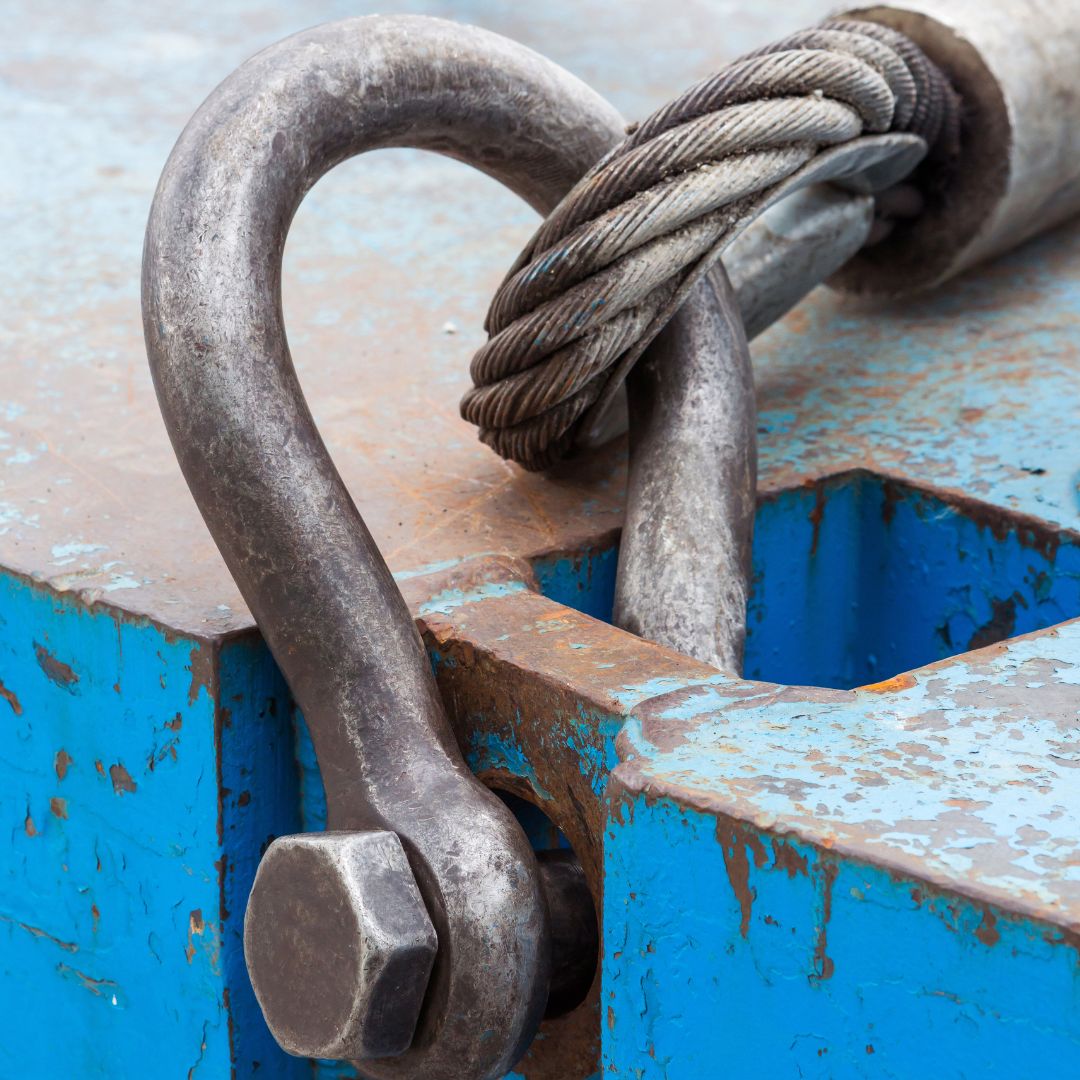

Shackle (In Use)
Shackle (In Use)

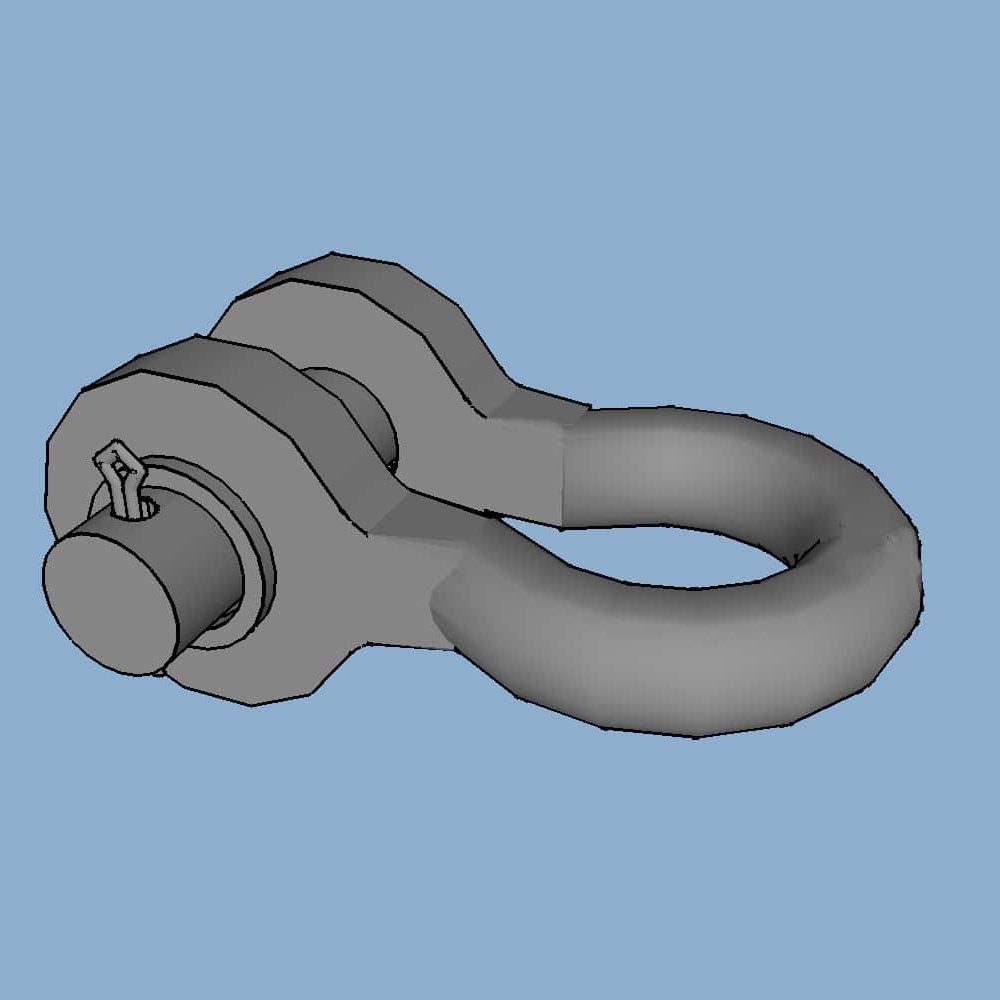

Shackle (CAD Drawing)
Shackle (CAD Drawing)

Production Techniques Involved
